| Product Name: | Wastewater Treatment 1000 L/H Automatic Chemical Dosing System | Type: | 3 -Tank Type |
|---|---|---|---|
| Material: | SS304 Stainless Steel | Service Life: | >10 Years |
| Operation: | Dosing System | Chemical Solution Production Capacity: | 1000 L/h |
| High Light: | flocculant dosing system,chemical dosing system in power plant |
||

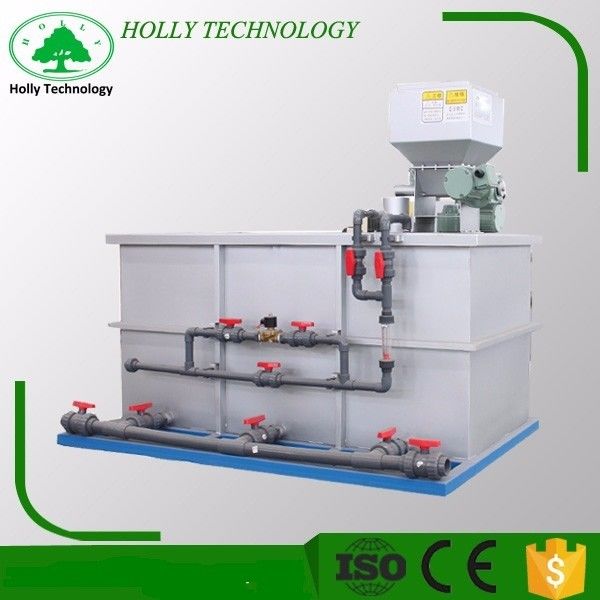

Wastewater Treatment 1000 L/H Automatic Chemical Dosing System
Introduction
Chemical Automatic Chlorine Dosing System is a continuous polymerpreparation and
dosingequipment. It can make the polymer compounded and mixed continuously and
efficiently, and then the homogeneous activated polymer solution can be prepared. It is mainly
used in municipalwater treatment, wastewater treatment plant and etc.
Main Features of Wastewater Treatment 1000 L/H Automatic Chemical Dosing System
♦Powder feeder with RPM LCD display makes the powder feed rate and concentration more
precise controlled (HYJY3 Only)
♦ Powder/liquid mixer won the new patent product design, the fusion effect is 100% (HYJY3
Only)
♦ Unique design of automatic intermittent operation and cross mixing function at stand-by time
makes the uniform solution always working in the best condition (HYJY3 Only)
♦ When powder feeding hopper reaches the minimum stock, led light warning and automatic
stop function makes overall maneuverability more perfect
Applications:
Pulp and paper
Food Processing
Chemical Processing
Textiles
Municipal
Algae Removal
Bakery Waste
Fiber Recovery
Paint Waste
Poultry Processing
Slaughter House Sewage
Specifications:
| Solution Preparation Amount Q(L/h) |
500 |
1000 |
1500 |
2000 |
3000 |
4000 |
|
| Dimension(B*L*H) | 900*1500*1650 | 1000*1625*1750 | 1000*2440*1800 | 1220*2440*1800 | 1220*3200*2000 | 1450*3200*2000 | |
| Powder Conveyor Power N(KW) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
|
|
Agitator |
Paddle Diaφ(mm) | 200 | 200 | 300 | 300 | 400 | 400 |
| Spindle speed n(r/min) | 120 | 120 | 120 | 120 | 120 | 120 | |
| Power N(KW) | 0.2*2 | 0.2*2 | 0.37*2 | 0.37*2 | 0.37*2 | 0.37*2 | |
| Dosing Screw Pump | Flow N(KW) | 0.5 | 1 | 2 | 2 | 3 | 4 |
| Lift(m) | 10 | 10 | 15 | 15 | 15 | 15 | |
| Power N (KW) | 0.75 | 0.75 | 1.1 | 1.1 | 2.2 | 2.2 | |
| Inlet pipe Dia DN1(mm) | 25 | 25 | 32 | 32 | 50 | 50 | |
| Outlet Pipe Dia DN2(mm) | 25 | 25 | 25 | 25 | 40 | 40 | |
