Product Details:
Payment & Shipping Terms:
|
| Product Name: | Nano Bubble Generator | Material: | Stainless Steel Or Spraying Coating Steel |
|---|---|---|---|
| Application: | Fishing Farming,wastewate Treatment | Bubble Size: | 80nm - 20μm |
| Gas-liquid Mixing Proportion: | 1:8-1:12 | Gas-liquid Dissolving Rate: | >95% |
| High Light: | dissolved oxygen generator,micro bubble generator system |
||

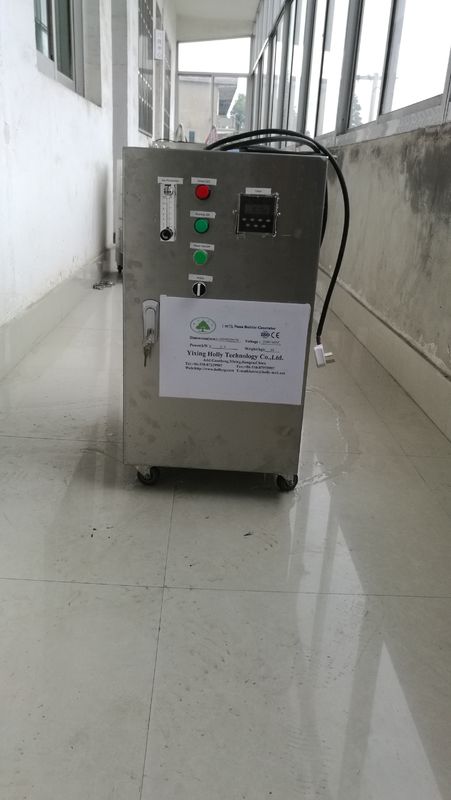

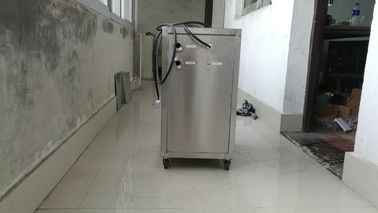

Water Air Machine Multi-Function Nano Bubble Ozone Generator System
Introduction
Ozone wastewater treatment will have a nanoscale mix water and air, greatly improve the
water solubility from bottom to top.(water solubility is greater than 5 mg/L), the residence time
of nano bubbles in the water 100 times longer than ordinary bubbles, cover a broader, mixing,
achieve the goal of overall aerobic.
Advantage
1. Using high-pressure rotary flow transient release technology,high density of micro nano
bubble,non-clogging,easy to maintain.
2. Functional bubble diameter of 200 nm ~ 50μm , saturated water can be quickly produced
with good gas-liquid dissolving effect.
3. Stable performance, high efficiency, low noise.
4. Wide range of application,such as : waste water /gas treatment aquaculture,agricultural
irrigation,bath and so on.
Technical Parameters
| HLYZ-001 | HLYZ-002 | HLYZ-006 | HLYZ-012 | |
| Water Inflow(m3/h) | 1 | 2 | 6 | 12 |
| Voltage(V) | 220/380 | 220/380 | 380 | 380 |
| Power(KW) | 0.5 | 1.1 | 3 | 6 |
| Size(mm) | 660*530*800 | 660*530*800 | 850*550*850 | 860*560*850 |
| Working Environment(ºC) | 0-100ºC | 0-100ºC | 0-100ºC | 0-100ºC |
| Working Capacity( cubic water) | 90 | 300 | 1200 | 2200 |
| Bubble Diameter(nm-μm) | 80nm-20μm | 80nm-20μm | 80nm-20μm | 80nm-20μm |
| Gas-liquid Mixing Proportion | 1:8-1:12 | 1:8-1:12 | 1:8-1:12 | 1:8-1:12 |
| Gas-liquid Dissolving Rate | >95% | >95% | >95% | >95% |
