Product Details:
Payment & Shipping Terms:
|
| Treating Capacity: | 6-10kg/h | Machine Type: | Centrifuge |
|---|---|---|---|
| Material: | SS304/SS316L, SS304/SS316L | Weight: | 300-1000 |
| Service Life: | >5years | Application: | Sewage Treatment |
| High Light: | sludge removal machine,slurry dewatering equipment |
||

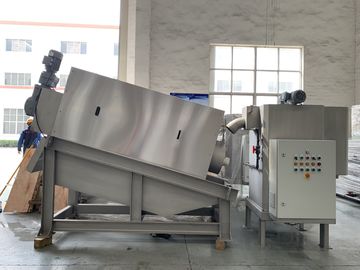

Screw filter press sludge dewatering machine for compact sewage treatment plant is a kind of water treatment system, which is widely used in municipal wastewater treatment engineering, petrochemical, light industry, chemical fiber, paper making, pharmaceutical, leather and other industries. The actual operation shows that the sludge dewatering can create considerable economic benefits and social benefits for the customers.
Technical parameters
| Model | DS Standard capacity(kg/h) |
Sludge treatment(m3/h) |
||||||||
| 10000mg/L | 20000mg/L | 30000mg/L | 40000mg/L | 50000mg/L | ||||||
| HLDS131 | 6-10 | 1 | 0.5 | 0.4 | 0.3 | 0.28 | ||||
| HLDS132 | 12-20 | 2 | 1 | 0.8 | 0.6 | 0.56 | ||||
| HLDS133 | 18-30 | 3 | 1.5 | 1.2 | 0.9 | 0.84 | ||||
| HLDS201 | 9-15 | 1.5 | 0.75 | 0.6 | 0.5 | 0.4 | ||||
| HLDS202 | 18-30 | 3 | 1.5 | 1.2 | 1 | 0.8 | ||||
| HLDS203 | 27-45 | 4.5 | 2.25 | 1.8 | 1.5 | 1.2 | ||||
| HLDS301 | 30-50 | 5 | 2.5 | 2 | 1.5 | 1.4 | ||||
| HLDS302 | 60-100 | 10 | 5 | 4 | 3 | 2.8 | ||||
| HLDS303 | 90-150 | 15 | 7.5 | 6 | 4.5 | 4.2 | ||||
| HLDS304 | 120-200 | 20 | 10 | 8 | 6 | 5.6 | ||||
| HLDS401 | 90-150 | 13 | 6.5 | 5 | 4 | 3.2 | ||||
| HLDS402 | 180-300 | 26 | 13 | 10 | 8 | 6.4 | ||||
| HLDS403 | 270-450 | 39 | 19.5 | 15 | 12 | 9.6 | ||||
| HLDS404 | 360-600 | 52 | 26 | 20 | 16 | 12.8 | ||||
| Model | DN(mm) |
Discharge Height(mm) |
Dimension(mm) |
N.W(kg) |
O.W(kg) |
||
| L | M | H | |||||
| HLDS131 | φ130*1 | 250 | 1860 | 740 | 1075 | 250 | 395 |
| HLDS132 | φ130*2 | 250 | 1960 | 870 | 1075 | 350 | 595 |
| HLDS133 | φ130*3 | 250 | 1960 | 920 | 1075 | 450 | 795 |
| HLDS201 | φ200*1 | 350 | 2650 | 750 | 1375 | 420 | 540 |
| HLDS202 | φ200*2 | 350 | 2650 | 940 | 1375 | 550 | 660 |
| HLDS203 | φ200*3 | 350 | 2650 | 1190 | 1375 | 700 | 1010 |
| HLDS301 | φ300*1 | 530 | 3440 | 940 | 1825 | 900 | 1300 |
| HLDS302 | φ300*2 | 530 | 3640 | 1260 | 1825 | 1350 | 2000 |
| HLDS303 | φ300*3 | 530 | 3900 | 1620 | 1825 | 1900 | 2700 |
| HLDS304 | φ300*4 | 530 | 3900 | 2040 | 1825 | 2500 | 3600 |
| HLDS401 | φ350*1 | 570 | 4350 | 1020 | 2160 | 2200 | 4200 |
| HLDS402 | φ350*2 | 570 | 4350 | 1550 | 2160 | 3500 | 6000 |
| HLDS403 | φ350*3 | 570 | 4570 | 2100 | 2160 | 5500 | 8000 |
| HLDS404 | φ350*4 | 570 | 4570 | 2650 | 2160 | 7000 | 9500 |
| Model | Motor Power | Rinse Water Pressure | Water Consumption(L/H) |
Maintennance Frequency |
||
| Screw shaft | agitator | total | ||||
| HLDS131 | 0.1 | 0.1 | 0.2 |
0.1Mpa-0.2Mpa No need high pressure rinse water |
48 |
5min/day |
| HLDS132 | 0.1*2 | 0.1 | 0.3 | 96 | ||
| HLDS133 | 0.1*3 | 0.1 | 0.4 | 144 | ||
| HLDS201 | 0.37 | 0.37 | 0.74 | 32 | ||
| HLDS202 | 0.37 | 0.37 | 1.11 | 64 | ||
| HLDS203 | 0.37 | 0.37 | 1.48 | 96 | ||
| HLDS301 | 0.75*1 | 0.75 | 1.5 | 40 | ||
| HLDS302 | 0.75*2 | 0.75 | 2.25 | 80 | ||
| HLDS303 | 0.75*3 | 0.75 | 3 | 120 | ||
| HLDS304 | 0.75*4 | 0.75 | 3.75 | 160 | ||
| HLDS401 | 1.1*1 | 0.75 | 1.85 | 80 | ||
| HLDS402 | 1.1*2 | 0.75 | 2.95 | 160 | ||
| HLDS403 | 1.1*3 | 0.75 | 4.05 | 240 | ||
| HLDS404 | 1.1*4 | 0.75 | 5.15 | 320 |
||
Features:
1. Automatic continuous operation
2. Compact design with flocculation and dewatering
3. Low power and water consumption
4. Low operation cost
5. No filter cloth, no clogging
6. No need for sludge thickener
7. Easy operation and maintenance
8. No vibration and noise
Procedure of dewatering machine
1. The sludge are transported to the flocculation tank through storage tank, and adequately
mixed by the mixer.
2. After big flocs are formed, the sewage is transported to the MDS screw press.
3. Flocs moves from the thickening zone to the dewatering zone.
4. Gaps between moving rings and fixed rings narrows, and the pressure of the end plate
increases dewatering,finally the sludge cake is discharged.
5. The sludge is transported out by shaftless screw conveyor.
Advantage
1) Without secondary pollution
2) Contactless, Wear Free Structure Design
3) Decrease Capital Investment
4) High Resistance to Oily Sludge
