Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fine Bubble Disc Diffuser | Flow Range: | 1-8m3/h |
|---|---|---|---|
| Application: | Water Treatment | Color: | Black, Blue |
| Customized: | Available | Size: | 9 Inch |
| High Light: | disc type air diffuser,disc air diffuser |
||

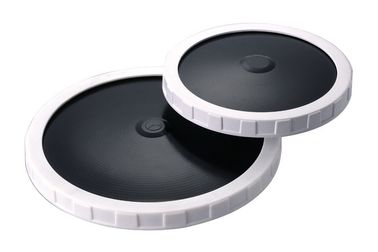

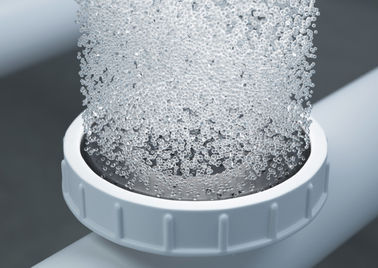

Fine Bubble Air Diffuser Disc Diffuser For Fish Water Treatment
Product Description
The disc diffuser series combines effective design, low installation costs, reliability and high
performance in intermittent and continuous aeration processes.Special designed the slits cut
opining, patterns and spacing between the slits for high oxygen transfer and longtime
operation.
Two kinds of membrane materials specially engineered for a wide spectrum of
applications:High grade EPDM- Municipal, Food processing and Animal processing.
Silicone: Pulp and paper, Petrochemical, Refining process and Industrial.
Technical Parameters
| Model | HLBQ170 | HLBQ215 | HLBQ260 | HLBQ350 | |
| Bubble Type | Coarse bubble | Fine bubble | Fine bubble | Fine bubble | |
| Size | 6 inch | 8 inch | 9 inch | 12 inch | |
| MOC | EPDM/Silicon membrane ABS/PP carrier plate |
EPDM/Silicon membrane ABS/PP carrier plate |
EPDM/Silicon membrane ABS/PP carrier plate |
EPDM/Silicon membrane ABS/PP carrier plate |
|
| Connector | 3/4'' NPT male thread | 3/4'' NPT male thread | 3/4'' NPT male thread | 3/4'' NPT male thread | |
| Bubble Size | 4-5mm | 1-2mm | 1-2mm | 1-2mm | |
| Design Flow | 1-5m3/h | 1.5-2.5m3/h | 3-4m3/h | 5-6m3/h | |
| Flow Range | 6-9m3/h | 1-6m3/h | 1-8m3/h | 1-12m3/h | |
| SOTE | ≥10%(6m submerged) | ≥38%(6m submerged) | ≥38%(6m submerged) | ≥38%(6m submerged) | |
| SOTR | ≥0.21kg O2/h | ≥0.31kg O2/h | ≥0.42kg O2/h | ≥0.75kg O2/h | |
| SAE | ≥7.5kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | ≥8.9kg O2/kw.h | |
| Headloss | 2000-3000Pa | 2000-4500Pa | 2000-4300Pa | 2000-4200Pa | |
| Service Area | 0.5-0.8m2 | 0.2-0.64m2 | 0.25-1.0m2 | 0.4-1.5m2 | |
| Service Life | >5year | >5year | >5year | >5year |
Finds Application In :
1. Aeration for SBR reaction basin, contact oxidation pond, and activated sludge aeration
basin in sewage disposal plant;
2. Aeration for denitrification / dephosphorization aerobic processes;
3. Aeration for excreta and animal wastewater treatment plant;
4. Aeration of deep aeration basin;
5. Aeration for high concentration wastewater aeration basin, and aeration for regulating pond
of wastewater treatment plant;
6. Aeration of fishpond and other applications.
Features
1.Simple structure, ease of installation
2.Tight sealing without air leakage
3.Maintenance-free design, long service life
4.Corrosion resistance and anti-clogging
5.High oxygen transfer efficiency
