Product Details:
Payment & Shipping Terms:
|
| Material: | SS304 | Feed Type: | External Type |
|---|---|---|---|
| Model Number: | HLDS300 | Color: | Silver |
| Power(KW): | 0.75 | Dimension (MM): | 760*700*1200 |
| High Light: | drum filter for pond,microscreen drum filter |
||

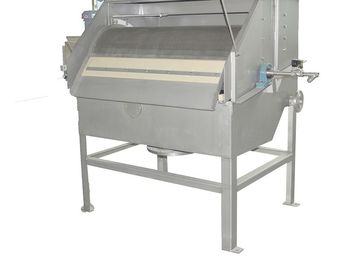

HLWLW-300 Rotary Drum Filter Screen for sewage Treatment Equipment
rotary drum filter is suitable for both small and medium operations with pumped influent. It’s
also applied for pretreatment of municipal and other wastewater.
thus the investment can be reduced a lot .the grid gaps range from 0.15mm to 5mm,according
to customer’s request.
Operation
The liquids to be filtered flow in the feeding tank through a flanged inlet and are conveyed
along with the filter surface through a special distributor equipped with wet seal. The solids
separation occurs there: the solids are kept and made to rotate by the external surface of the
rotating filter, and, finally, discharged by a brass cleaning blade. The liquid filtered passes
through the filtering drum, where it is washed again on the opposite side of the filter, conveyed
on the tank bottom and then discharged. The filter rotates thanks to a bath oil gearbox directly
connected at the rotating drum filter. Inside the rotating filter there is or a washing system
equipped with nozzles (mobile washing system), which work with high-pressure water, or a
bar composed of a set of spray nozzles (fixed washing system), through which the filtering
drum can be periodically cleaned.
Technical Parameters
| Model |
Screen Size(mm)
|
Power(KW) | Material | Backwash water |
Dimension (MM) |
|
|
Flow (m³/h) |
Pressure (MPa) |
|||||
| HLWLW-300 |
φ300*500 Space:0.15-5mm |
0.55 | SS304 | 2.5-3 | ≥0.4 | 760*700*1200 |
| HLWLW-400 |
φ400*600 Space:0.15-5mm |
0.55 | SS304 | 2.5-3 | ≥0.4 | 860*800*1300 |
| HLWLW-500 |
φ500*750 Space:0.15-5mm |
0.75 | SS304 | 2.5-3 | ≥0.4 | 1050*900*1500 |
| HLWLW-600 |
φ600*900 Space:0.15-5mm |
0.75 | SS304 | 3.5-4 | ≥0.4 | 1160*1000*1500 |
| HLWLW-700 |
φ700*1000 Space:0.15-5mm |
0.75 | SS304 | 3.5-4 | ≥0.4 | 1260*1100*1600 |
| HLWLW-800 |
φ800*1200 Space:0.15-5mm |
1.1 | SS304 | 4.5-5 | ≥0.4 | 1460*1200*1700 |
| HLWLW-900 |
φ900*1350 Space:0.15-5mm |
1.5 | SS304 | 4.5-5 | ≥0.4 | 1600*1300*1800 |
| HLWLW-1000 |
φ1000*1500 Space:0.15-5mm |
1.5 | SS304 | 4.5-5 | ≥0.4 | 1600*1300*1800 |
