Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fine Bubble Tube Diffuser | Material: | EPDM,ABS |
|---|---|---|---|
| Application: | Wastewater Treatment | Color: | White, Black, Blue |
| Length: | 500mm | Normal Air Flow: | 5-20mm |
| High Light: | air tube diffuser,fine bubble air diffuser |
||

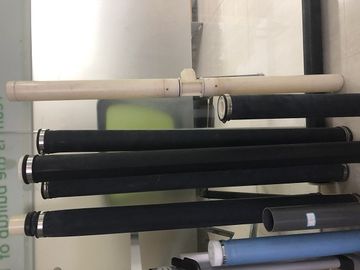

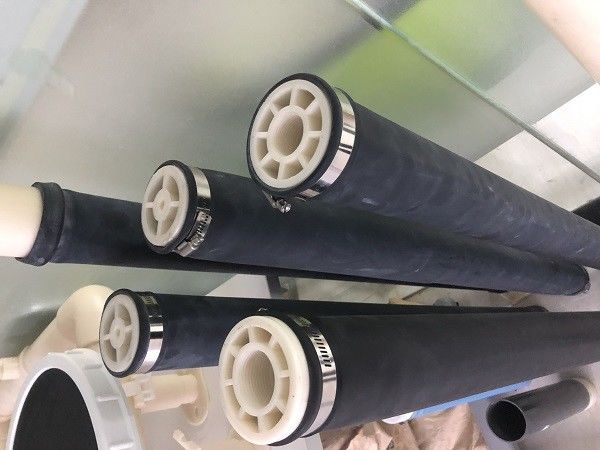

Fine Bubble Tube Air Diffuser For Fish Aquaculture Water Treatment
Tube diffuser has also been proven to be very easy to install and maintain, leading to
minimal maintenance and operating overhead costs in the process.
With its advanced EPDM technology, tube diffusers offer optimum performance for efficient
oxygen transfers and standard release of air pressure on an economical and easy-to-install
platform.
Parameter
| Model | φ63 | φ93 | φ113 |
| Moc | EPDM/Silicon membrane ABS tube | EPDM/Silicon membrane ABS tube | EPDM/Silicon membrane ABS tube |
| Length | 500/750/1000mm | 500/750/1000mm | 500/750/1000mm |
| Connector | 3/4NPT | 3/4NPT | 3/4NPT |
| Flow range(m3/h) | 2-14 | 5-20 | 6-28 |
| Bubble Size(mm) | 1-2 | 1-2 | 1-2 |
| Service Area(m2) | 0.75-2.5 | 1.0-3.0 | 1.5-2.5 |
| Service Life | >5year | >5year | >5year |
Features
1. reduces installation time.
2. Any diffuser length is available to suit the needs of each application.
3. EPDM rubber.
4. Attachment system eliminates structural concerns of many other tube diffuser designs.
5. Suitable for off/on applications.
6. Diffusers are factory assembled for easy installation.
7. Available membrane material: EPDM, Silicon or customized
Applications
Aquaculture Aeration
Aeration tubing has also been used for aquaculture aeration and production systems. With
the use of tube diffusers, shrimp or fish production can reach its full potential since the
aeration system effectively oxygenates the water. The technology used in the manufacture
of tube diffusers has been consistently applied in hatcheries, live-haul trucks, cage culture,
and recirculating systems, among others.
