| Product Name: | Bar Screen | Place Of Origin: | Jiangsu, China |
|---|---|---|---|
| Material: | SS304 Stainless Steel | Model: | 1000 |
| Max Water Depth H4 (mm): | 540 | Installation Angle: | 35° |
| High Light: | mechanical fine screen,sewage bar screen |
||

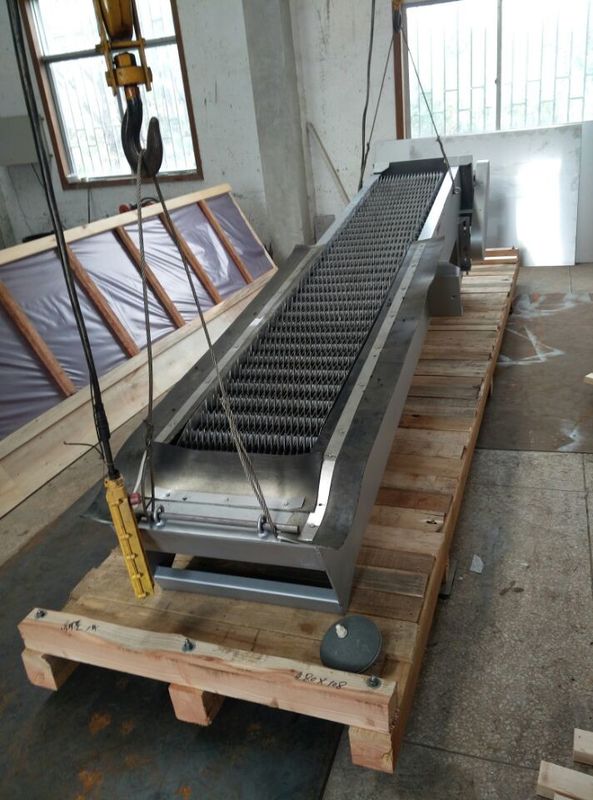

Stainless Steel Automatic Bar Screen For Wastewater Treatment System
Rake tooth chain similar to grilling by water flow direction, the rake tooth clearance which
assembled in rake tooth chain shaft can be chose according to usage condition; Which can
guarantee water flow pass by smoothly after the rake tooth separate the suspended solid in
the fluid. the whole process can be continuous and intermittent.
Features
♦ The driving unit is directly driven by cycloidal gear reducer or helical gear reducer which
shows the nature of working stability, low noise, big load capability and high efficiency in
conveying.
♦ Simple structure with compact size, easy to install and move. Device can self-clean up
while working, easy to maintain.
♦ Easy to operate, can be controlled directly on the spot or remote.
♦ Include overload protection device, machine will shut down automatically when
malfunction happens to avoid damage.
♦ When the device width exceeds 1500mm, will be made into parallel machine to ensure the
overall strength.
Technical parameters
| Model | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | ||
| Drum Diameter(mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | ||
| Drum Length I(mm) | 500 | 620 | 700 | 800 | 1000 | 1150 | 1250 | 1350 | ||
| Transport Tube d(mm) | 219 | 273 | 273 | 300 | 300 | 300 | 360 | 500 | ||
| Channel Width b (mm) | 650 | 850 | 1050 | 1250 | 1450 | 1650 | 1850 | 2070 | ||
| Max Water Depth H4 (mm) | 350 | 150 | 540 | 620 | 750 | 860 | 960 | 1050 | ||
| Installation Angle | 35° | |||||||||
| Channel Depth H1(mm) |
600-3000 |
|||||||||
| Discharge Height H2(mm) |
Customized |
|||||||||
| H3(mm) | Confirmed by type of reducer | |||||||||
| Installation Length A(mm) |
A=h*1.43-0.48D |
|||||||||
| Total Length L (mm) | L=H*1.743-O.75D | |||||||||
| Flow rate(m/s) | 1.0 | |||||||||
|
Volume (m3/h) |
Mesh (mm) |
0.5 | 80 | 135 | 235 | 315 | 450 | 585 | 745 | 920 |
| 1 | 125 | 215 | 370 | 505 | 720 | 950 | 1205 | 1495 | ||
| 2 | 190 | 330 | 555 | 765 | 1095 | 1440 | 1830 | 2260 | ||
| 3 | 230 | 400 | 680 | 935 | 1340 | 1760 | 2235 | 2755 | ||
| 4 | 235 | 430 | 720 | 1010 | 1440 | 2050 | 2700 | 3340 | ||
| 5 | 250 | 465 | 795 | 1105 | 1575 | 2200 | 2935 | 3600 | ||
|
Model
Parameter |
HLCF-500 | HLCF-600 | HLCF-700 | HLCF-800 | HLCF-900 | HLCF-1000 | HLCF-1100 | HLCF-1200 | HLCF-1300 | HLCF-1400 | HLCF-1500 | ||
| Flow Depth H3(m) | 1.0 | ||||||||||||
| Flow Velocity V2(m/s) |
0.8 |
||||||||||||
|
Grid Spacing B(mm) |
1 |
Flow Rate Q (㎡/s) |
0.03 | 0.04 | 0.05 | 0.06 | 0.07 | 0.08 | 0.08 | 0.09 | 0.10 | 0.11 | 0.12 |
| 3 | 0.07 | 0.09 | 0.10 | 0.12 | 0.14 | 0.16 | 0.18 | 0.20 | 0.22 | 0.24 | 0.26 | ||
| 5 | 0.09 | 0.11 | 0.14 | 0.16 | 0.18 | 0.21 | 0.23 | 0.26 | 0.28 | 0.31 | 0.33 | ||
| 10 | 0.11 | 0.14 | 0.17 | 0.21 | 0.24 | 0.27 | 0.30 | 0.33 | 0.37 | 0.4 | 0.43 | ||
| 15 | 0.13 | 0.16 | 0.20 | 0.24 | 0.27 | 0.31 | 0.34 | 0.38 | 0.42 | 0.45 | 0.49 | ||
| 20 | 0.14 | 0.17 | 0.21 | 0.25 | 0.29 | 0.33 | 0.37 | 0.41 | 0.45 | 0.49 | 0.53 | ||
| 25 | 0.14 | 0.18 | 0.22 | 0.27 | 0.31 | 0.35 | 0.39 | 0.43 | 0.47 | 0.51 | 0.55 | ||
| 30 | 0.15 | 0.19 | 0.23 | 0.27 | 0.32 | 0.36 | 0.4 | 0.45 | 0.49 | 0.53 | 0.57 | ||
| 40 | 0.15 | 0.20 | 0.24 | 0.29 | 0.33 | 0.38 | 0.42 | 0.46 | 0.51 | 0.55 | 0.6 | ||
| 50 | 0.16 | 0.20 | 0.25 | 0.29 | 0.34 | 0.39 | 0.43 | 0.48 | 0.52 | 0.57 | 0.61 | ||
