Product Name: | Bar Screen | Place Of Origin: | Jiangsu, China |
---|---|---|---|
Material: | SS304 Stainless Steel | Color: | Silver |
Flow Rate(m/s): | 1.0 | Flow Depth H3(m): | 1.0 |
High Light: | mechanical fine screen,sewage bar screen |

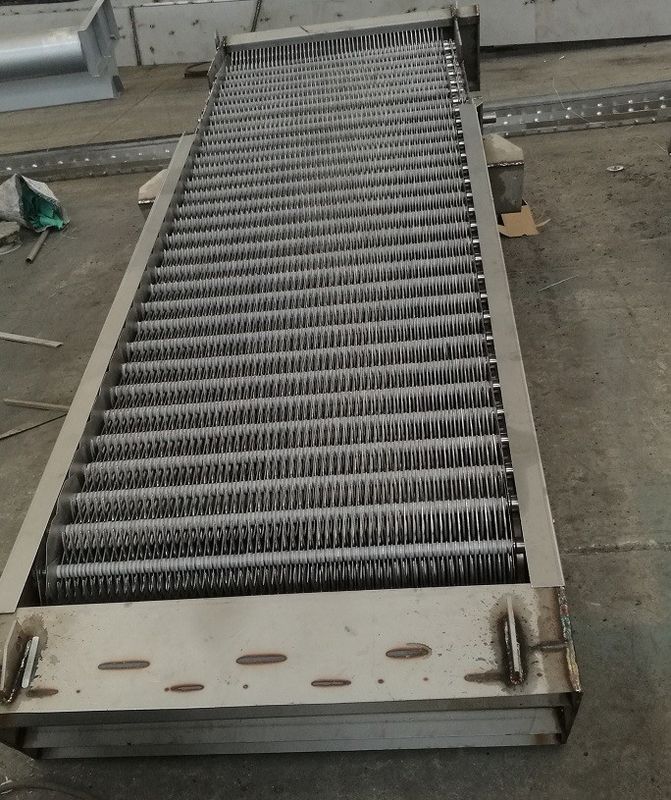

Auto Bar Screen Mechanical Coarse Screen For Wastewater Station
The mechnical type Mechanical bar screen for sewage treatment plant is a kind of by the wire
rope traction sewage equipment, space grid pure and dirty machine generally be applicable to
Facilities of intake, For example: city, water factory ,wastewater treatment factory .aim at
Intercepting larger into the water and coarser clutter and junk ,protect water a pump lesf’s
round to be free from damage, Ensure the normal operation of the follow-up processing
Features
♦ The driving unit is directly driven by cycloidal gear reducer or helical gear reducer which
shows the nature of working stability, low noise, big load capability and high efficiency in
conveying.
♦ Simple structure with compact size, easy to install and move. Device can self-clean up
while working, easy to maintain.
♦ Easy to operate, can be controlled directly on the spot or remote.
♦ Include overload protection device, machine will shut down automatically when
malfunction happens to avoid damage.
♦ When the device width exceeds 1500mm, will be made into parallel machine to ensure the
overall strength.
Technical parameters
Model | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | ||
Drum Diameter(mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | ||
Drum Length I(mm) | 500 | 620 | 700 | 800 | 1000 | 1150 | 1250 | 1350 | ||
Transport Tube d(mm) | 219 | 273 | 273 | 300 | 300 | 300 | 360 | 500 | ||
Channel Width b (mm) | 650 | 850 | 1050 | 1250 | 1450 | 1650 | 1850 | 2070 | ||
Max Water Depth H4 (mm) | 350 | 150 | 540 | 620 | 750 | 860 | 960 | 1050 | ||
Installation Angle | 35° | |||||||||
Channel Depth H1(mm) |
600-3000 |
|||||||||
Discharge Height H2(mm) |
Customized |
|||||||||
H3(mm) | Confirmed by type of reducer | |||||||||
Installation Length A(mm) |
A=h*1.43-0.48D |
|||||||||
Total Length L (mm) | L=H*1.743-O.75D | |||||||||
Flow rate(m/s) | 1.0 | |||||||||
Volume (m3/h) |
Mesh (mm) |
0.5 | 80 | 135 | 235 | 315 | 450 | 585 | 745 | 920 |
1 | 125 | 215 | 370 | 505 | 720 | 950 | 1205 | 1495 | ||
2 | 190 | 330 | 555 | 765 | 1095 | 1440 | 1830 | 2260 | ||
3 | 230 | 400 | 680 | 935 | 1340 | 1760 | 2235 | 2755 | ||
4 | 235 | 430 | 720 | 1010 | 1440 | 2050 | 2700 | 3340 | ||
5 | 250 | 465 | 795 | 1105 | 1575 | 2200 | 2935 | 3600 |
Model
Parameter |
HLCF-500 | HLCF-600 | HLCF-700 | HLCF-800 | HLCF-900 | HLCF-1000 | HLCF-1100 | HLCF-1200 | HLCF-1300 | HLCF-1400 | HLCF-1500 | ||
Flow Depth H3(m) | 1.0 | ||||||||||||
Flow Velocity V2(m/s) |
0.8 |
||||||||||||
Grid Spacing B(mm) |
1 |
Flow Rate Q (㎡/s) |
0.03 | 0.04 | 0.05 | 0.06 | 0.07 | 0.08 | 0.08 | 0.09 | 0.10 | 0.11 | 0.12 |
3 | 0.07 | 0.09 | 0.10 | 0.12 | 0.14 | 0.16 | 0.18 | 0.20 | 0.22 | 0.24 | 0.26 | ||
5 | 0.09 | 0.11 | 0.14 | 0.16 | 0.18 | 0.21 | 0.23 | 0.26 | 0.28 | 0.31 | 0.33 | ||
10 | 0.11 | 0.14 | 0.17 | 0.21 | 0.24 | 0.27 | 0.30 | 0.33 | 0.37 | 0.4 | 0.43 | ||
15 | 0.13 | 0.16 | 0.20 | 0.24 | 0.27 | 0.31 | 0.34 | 0.38 | 0.42 | 0.45 | 0.49 | ||
20 | 0.14 | 0.17 | 0.21 | 0.25 | 0.29 | 0.33 | 0.37 | 0.41 | 0.45 | 0.49 | 0.53 | ||
25 | 0.14 | 0.18 | 0.22 | 0.27 | 0.31 | 0.35 | 0.39 | 0.43 | 0.47 | 0.51 | 0.55 | ||
30 | 0.15 | 0.19 | 0.23 | 0.27 | 0.32 | 0.36 | 0.4 | 0.45 | 0.49 | 0.53 | 0.57 | ||
40 | 0.15 | 0.20 | 0.24 | 0.29 | 0.33 | 0.38 | 0.42 | 0.46 | 0.51 | 0.55 | 0.6 | ||
50 | 0.16 | 0.20 | 0.25 | 0.29 | 0.34 | 0.39 | 0.43 | 0.48 | 0.52 | 0.57 | 0.61 |
