Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fine Bubble Tube Diffuser | Material: | EPDM,ABS |
|---|---|---|---|
| Application: | Wastewater Treatment | Color: | White, Black, Blue |
| Length: | 1000mm | Normal Air Flow: | 8mm |
| High Light: | air tube diffuser,fine bubble air diffuser |
||

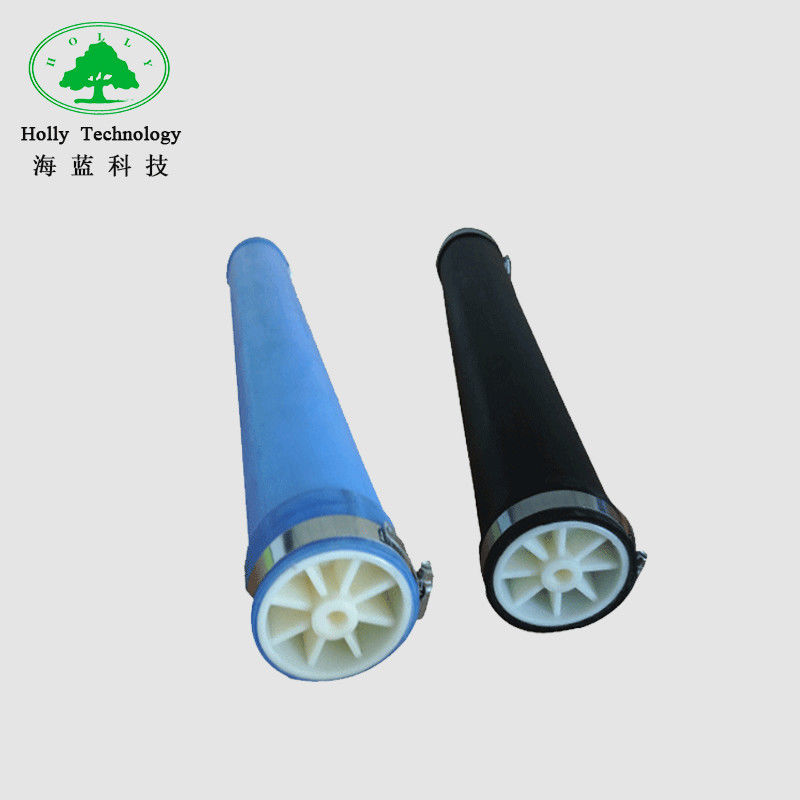

Sewage Treatment Tube Fine Bubble Diffuser For Municipal Waste Water
The Tube Fine Bubble Diffusers increase the oxygen transfer efficiency while decreasing the
power consumption to provide the same quality of effluent water. The diffusers can be used to
create zones with high oxygen concentrations (anoxic or aerobic), minimal oxygen
concentration (anoxic), and no oxygen (anaerobic), offering plant operator a great deal of
operational flexibility.
Parameter
| Model | φ63 | φ93 | φ113 |
| Moc | EPDM/Silicon membrane ABS tube | EPDM/Silicon membrane ABS tube | EPDM/Silicon membrane ABS tube |
| Length | 500/750/1000mm | 500/750/1000mm | 500/750/1000mm |
| Connector | 3/4NPT | 3/4NPT | 3/4NPT |
| Flow range(m3/h) | 2-14 | 5-20 | 6-28 |
| Bubble Size(mm) | 1-2 | 1-2 | 1-2 |
| Service Area(m2) | 0.75-2.5 | 1.0-3.0 | 1.5-2.5 |
| Service Life | >5year | >5year | >5year |
Features:
reduces installation time.
Any diffuser length is available to suit the needs of each application.
EPDM rubber.
Attachment system eliminates structural concerns of many other tube diffuser designs.
Suitable for off/on applications.
Diffusers are factory assembled for easy installation.
Available membrane material: EPDM, Silicon or customized
Applications
1.Municipal waste water treatment.
2.Industrial waste water treatment.
3.Clean water treatment.
4.Sludge stabilization.
5.Wastewater ozone diffusion.
6.Aeration of fish ponds.
7.Aeration of streams and lakes.
