Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Jiangsu, China (Mainland) | Material: | SS304 |
|---|---|---|---|
| Application: | Water Treatment | Certification: | CE, ISO9001 |
| Slag Discharge Height H2(mm): | Designed Based On Customer's Request | H3(mm): | Confirmed According To Reducer Type |
| High Light: | fine screen wastewater treatment,wastewater screening equipment |
||

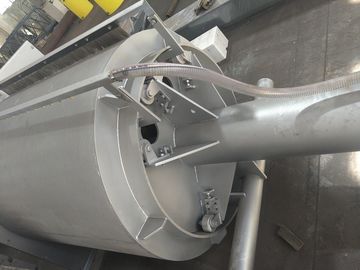

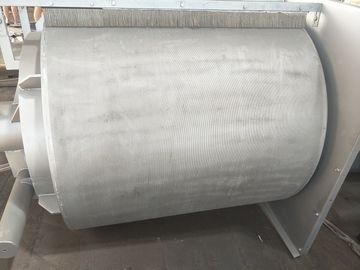

Drum Screen Filter With Inlet Screen For Wastewater Treatment Plant
Product Description
Rotary Drum Screens with independent operation
•Suitable to be installed in each channel and in every condition
•Pre-treatment of Domestic & Municipal Waste Waters
•Solids Recovery & Processing from Industrial Effluents
•MBR Membrane Bioreactor Inlet Screening
Technical parameters
| Model | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | ||
| Drum Diameter(mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | ||
| Drum Length I(mm) | 500 | 620 | 700 | 800 | 1000 | 1150 | 1250 | 1350 | ||
| Transport Tube d(mm) | 219 | 273 | 273 | 300 | 300 | 300 | 360 | 500 | ||
| Channel Width b (mm) | 650 | 850 | 1050 | 1250 | 1450 | 1650 | 1850 | 2070 | ||
| Max Water Depth H4 (mm) | 350 | 150 | 540 | 620 | 750 | 860 | 960 | 1050 | ||
| Installation Angle | 35° | |||||||||
| Channel Depth H1(mm) | 600-3000 |
|||||||||
| Discharge Height H2(mm) | Customized |
|||||||||
| H3(mm) | Confirmed by type of reducer | |||||||||
| Installation Length A(mm) | A=h*1.43-0.48D |
|||||||||
| Total Length L (mm) | L=H*1.743-O.75D | |||||||||
| Flow rate(m/s) | 1.0 | |||||||||
| Volume (m3/h) |
Mesh (mm) |
0.5 | 80 | 135 | 235 | 315 | 450 | 585 | 745 | 920 |
| 1 | 125 | 215 | 370 | 505 | 720 | 950 | 1205 | 1495 | ||
| 2 | 190 | 330 | 555 | 765 | 1095 | 1440 | 1830 | 2260 | ||
| 3 | 230 | 400 | 680 | 935 | 1340 | 1760 | 2235 | 2755 | ||
| 4 | 235 | 430 | 720 | 1010 | 1440 | 2050 | 2700 | 3340 | ||
| 5 | 250 | 465 | 795 | 1105 | 1575 | 2200 | 2935 | 3600 |
||
Features:
1. Little hydraulic loss, high efficiency, and large processing capacity.
2. Whole stainless steel structure, convenient in maintenance and long service life.
3. The working device of the equipment can clean the equipment by itself.
4. A system with more functions, and structure compact.
Municipal Sewage treatment
Papermaking wastewater
Water Treatment Plant
Leather industry
Beverage industry
Slaughterhouse
Pharmaceutical wastewater
Food industry
Petrochemical industry
Textile industry
