Product Details:
Payment & Shipping Terms:
|
| Screw Type: | Shaftless | Place Of Origin: | Jiangsu, China (Mainland) |
|---|---|---|---|
| Material: | SS304 Stainless Steel | Application: | Water Treatment |
| Color:: | As Requirement | Working Condition: | Continuous Type |
| High Light: | dewatering screw conveyor,concrete screw conveyor |
||

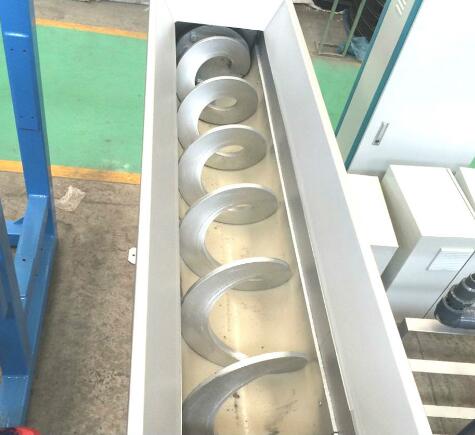

Stainless Steel Shaftless Inclined Screw Auger Conveyor For Powder
working principle
Shaftless Screw conveyor is relying on a spiral blade shaft in the trough of closed continuous
rotation in order to impel the lose of material moving. At this time, the material are like the bolt,
in spinning along the axial moving forward gradually, finally discharging mouth off.

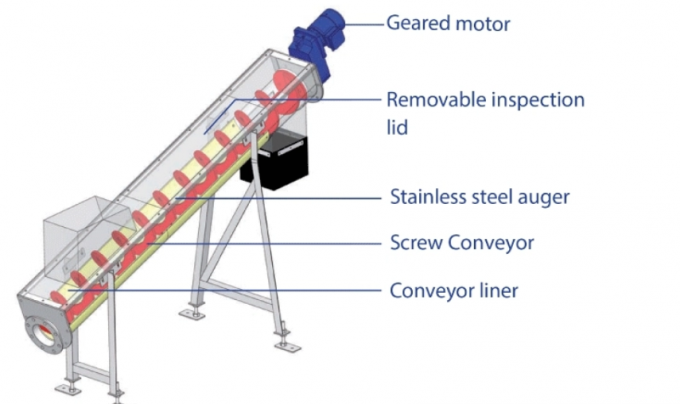

shaftless screw conveyor consisits of drive equipment, shaftless spiral body, U-shaped
groove, inlet and outlet mouth, cover and stand.when the material goes into the U-shaped
groove, the use of friction between the spiral shaft and material can force the material go into
the outlet moth to discharge.
Technical Parameters
| Model | HLSC200 | HLSC260 | HLSC320 | HLSC355 | HLSC420 | HLSC500 | |
| Conveying Capacity(m3/h) | 00 | 2 | 3.5 | 9 | 11.5 | 15 | 25 |
| 150 | 1.4 | 2.5 | 6.5 | 7.8 | 11 | 20 | |
| 300 | 0.9 | 1.5 | 4.1 | 5.5 | 7.5 | 15 | |
| Max Conveying Length(m) | 10 | 15 | 20 | 20 | 20 | 25 | |
| Body Material | SUS304 | ||||||
Main Features
♦ Ease of installation, stable operation
♦ Automatic controlled, low noise, low leakage
♦ Internal bearings are eliminated, low maintenance
♦ Long service life, low total cost of ownership
♦ Improved conveying efficiency when compared to other types of conveyors
♦ Allows greater flexibility for plant layout due to configurations available
Advantages
1.Fully Automatic Control
2.Combining with the auto control system, the machine runs very safely and simply and can
be programmed according to the requirement of the users. It can operate automatically for 24
hours, unmanned.
3.Low Running Cost
4.Power-use: less than 5% of centrifuge.
5.National standard long life ,low consumption ,low noise .
6.Non-clogging
7.Self-cleaning with small amount of water.
