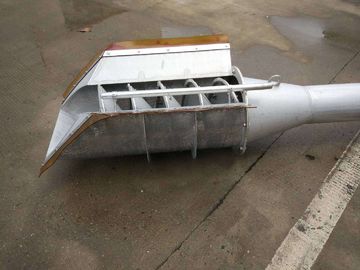

Self Cleaning Water Filter Screw Screen For Textile , Mechanical Screen Wastewater

Self Cleaning Water Filter Screw Screen For Textile , Mechanical Screen Wastewater
Self Cleaning Water Filter Screw Screen For Textile , Mechanical Screen Wastewater Self Cleaning Water Filter Screw Screen For Textile , Mechanical Screen Wastewater

Large Image :  Self Cleaning Water Filter Screw Screen For Textile , Mechanical Screen Wastewater

Product Details:

Place of Origin: China
Brand Name: HOLLY
Certification: Ce, ISO9001
Model Number: HLSS

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: US $2000.00-$10000.00 / Set
Packaging Details: standard export parking
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100set per month
Detailed Product Description
Product Name: Screw Screen Throughput Rate: 1000 M3/h
Screen Mesh Size: 0.25 Mm To 10 Mm Screen Width: 200 Mm To 700 Mm
Material: Carbon Steel Or Stainless Steel After-sale Service: Engineers Available
High Light:

wastewater inlet screens

,

drum screen filter

Stainless Steel Screw Drum Screen Process For Textile Wastewater Treatment

Product Description

Solids dewatering screen screw screen for landfill disposal is a Screw Screen that consists of


a screen basket, a conveyor screw, and a compaction section. GE is almost identical with

GCP but misses the compaction section. It is suitable for applications where screenings may

not or cannot be compacted.


working principle

Screw screen to the horizontal equipment installed in the drains, the water from flowing into

the drum drum ends, the water flows through the grid gate slit, solid waste is filtered in the

grid baskets, cleaning arm with a finger in a circular motion when cleaning Grilling gap,

rake teeth extending into the grid, the solid was removed when the cleaning arm at the

highest point, by the action of water washing and slag plate, remove the garbage down from

the rake teeth, and fall into the garbage collection means a screw conveyor bucket, during

transport through the variable pitch action is dehydrated at the uppermost end of the

compression zone is squeezed, and squeezed the water is returned to the canal, and finally

into the garbage container or a successor device, and then processed.

Benefits

Throughput rates up to 1000 m³/h (589 cfm)

Screen mesh size ranging from 0.25 mm (0.01") to 10 mm (0.4")

Screen width ranging from 200 mm (8") to 700 mm (27½")

Stainless steel casing

Shaftless spiral screw in carbon steel or stainless steel

Intermittent operation

Variety of screen mesh sizes

Versatility: can be installed in a concrete channel on site or supplied with a self-supporting

container (supplied on request)

Volume reduction up to 50%

Absence of inside bearings

No mechanical components in contact with the product handled

Slow r.p.m.

Shaftless spiral, therefore no jamming or blocking even with fibrous products

Possibility of discharge into plastic bags

Long-life screw brushes

Low investment costs

Technical parameters

Model No.Max. Flow LevelCh. Width in/mmScreen Basket Diam.in/mmGrinder ModelMax. Flow Mgd/ l/sGrinder HP/kwScrew HP/KW
S12

12”-60”
(305-1524mm)

14”-24”
(356-610mm)

12”
(305mm)

-

6.4
(280)

-

2
(1.5)

S16

18”-60”
(457-1524mm)

18”-28”
(457-711mm)

16”
(406mm)

-

9.7
(425)

-

2
(1.5)

S20

20”-60”
(508-1524mm)

22”-32”
(559-813mm)

20”
(508mm)

-

12.9
(265)

-

2
(1.5)

S24

24”-60”
(610-1524mm)

26”-36”
(660-914mm)

24”
(610mm)

-

15.7
(688)

-

2
(1.5)

S27

30”-60”
(762-1524mm)

32”-42”
(813-1067mm)

27”
(686mm)

-

19.8
(867)

-

2
(1.5)

SL12

12”-60”
(305-1524mm)

14”-24”
(356-610mm)

12”
(305mm)

TM500

3.5
(153)

3-5
(2.2-3.7)

2
(1.5)

SLT12

14”-60”
(356-1524mm)

18”-40”
(457-1016mm)

12”
(305mm)

TM1400

7.8
(342)

3-5
(2.2-3.7)

2
(1.5)

SLD16

18”-60”
(457-1524mm)

36”-60”
(914-1524mm)

16”
(406mm)

TM14000D

13.5
(591)

5
(3.7)

2
(1.5)

SLX12

14”-60”
(356-1524mm)

22”-24”
(559-610mm)

12”
(305mm)

TM1600

3.5
(153)

7.5-15
(5.6-11.2)

2
(1.5)

SLX16

18”-60”
(457-1524mm)

22”-28”
(559-711mm)

16”
(406mm)

TM1600

5.6
(245)

7.5-15
(5.6-11.2)

2
(1.5)


 Self Cleaning Water Filter Screw Screen For Textile , Mechanical Screen Wastewater 0
