Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fine Bubble Membrane Plate Diffuser | Material: | EPDM , Silicon |
|---|---|---|---|
| Bubble Diameter(mm): | 0.8-1.9 | Application: | Aquaculture,Wastewater Treatment |
| Standard Oxygen Transfer Effficiency: | ≥40% | Standard Oxygenation Capacity: | ≥0.99kg O2/h |
| Highlight: | air diffusion aerator,industrial pond aerator |
||

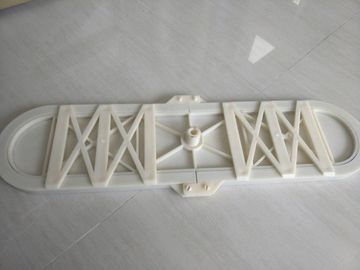

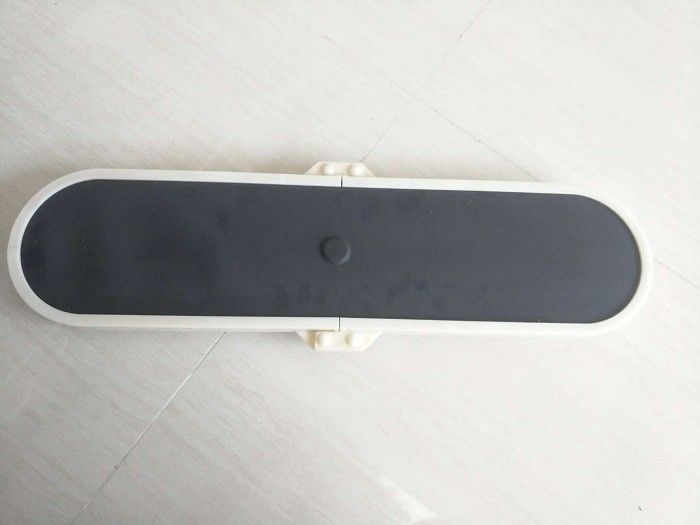

EPDM/Silicone Shrimp Farming Plate Aerator In The Water Treatment
Main characteristics of air diffuser aeration
a.Small Bubble diameter
b.Large gas-liquid working area
c.Bubble spread evenly, no clogging
d.Strong corrosion resistance
e.High aeration efficiency
f.Long life, sustainable working
g.EPDM material
h.Easily open,Low resistance
i.Aeration large service area
j.Sludge fall off easily
k.Plenty of extension range
l.Good mechanized assembly
m.Best seal performance
n.Strong strength
Features
• Ideal for air-on/air-off applications such as SBRs, aerobic digesters, and anoxic swing zones,
as well as continuous operation
• Over 22 million diffusers installed in municipal and industrial applications worldwide
• Advanced membrane perforation technique creates extremely fine, uniform bubble pattern
for optimal oxygen transfer
• Low maintenance and long service life of more than 5 years
• Using imported raw material
Advantages
1.Replacement of other diffuser brands of any membrane and size.
2.Easy equipping or retrofitting any types and dimensions of piping.
3.High quality material to insure long service lift up to 10years in proper opearation.
4.Space and energy saving to cut down human and operation cost.
5.Quickly to outdated and less efficient technologies.
Wastewater Treatment Application and Rubber+plastic+ABS Material rubber air diffuser
aerators manufacturer
Technical Parameters
| Model | HLBQ650 | HLBQ1100 |
| Membrane Material | EPDM/Silicon | EPDM/Silicon |
| Membrane thickness | 1.8-2.0mm | 1.8-2.0mm |
| Bubble Diameter | 0.8-1.9mm | 0.8-1.9mm |
| Standard Airflow | 6m3/h | 10m3/h |
| Aeration Range | 1-16m3/h | 4-32m3/h |
| Resistance Loss | 2.0-4.3kPa | 2.0-4.3kPa |
|
Standard Oxygen Transfer Effficiency (6m water depth) |
≥40% | ≥40% |
| Standard Oxygenation capacity | ≥0.99kg O2/h | ≥1.82kg O2/h |
| Oxygenation Effficiency | ≥9.2kg O2/kw·h | ≥9.2kg O2/kw·h |
| Effective Service Area | 0.5-2.5m2 | 1.0-4.0m2 |
