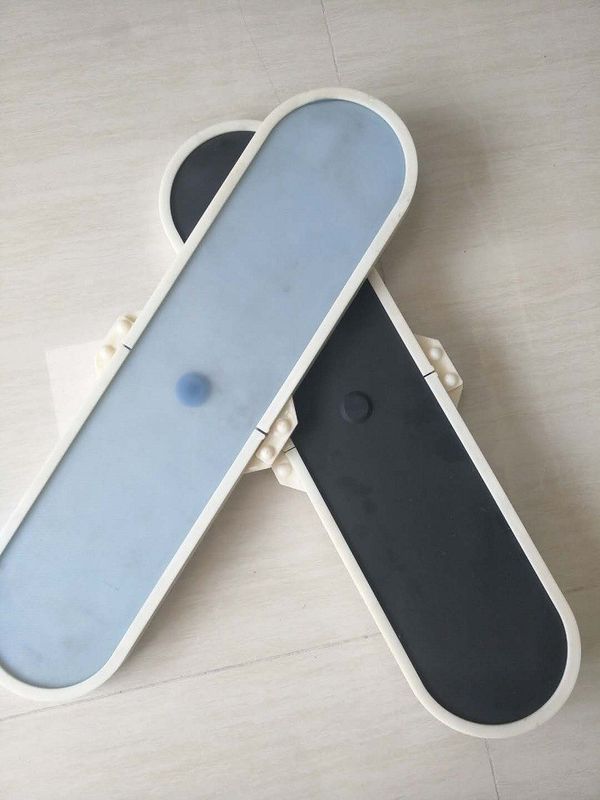

Municipal Sewage Treatment EPDM Fine Bubble Plate Aerator

Municipal Sewage Treatment EPDM Fine Bubble Plate Aerator
Municipal Sewage Treatment EPDM Fine Bubble Plate Aerator Municipal Sewage Treatment EPDM Fine Bubble Plate Aerator

Large Image :  Municipal Sewage Treatment EPDM Fine Bubble Plate Aerator

Product Details:
Place of Origin: China
Brand Name: HOLLY
Certification: ISO9001,CE
Model Number: HLBQ
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: USD13-20 PCS
Packaging Details: Bubble pack and five-layor carton for Municipal Sewage Treatment EPDM Fine Bubble Plate Aerator
Delivery Time: According to the order quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS per month
Detailed Product Description
Product Name: Municipal Sewage Treatment EPDM Fine Bubble Plate Aerator Material: EPDM , Silicon
Bubble Diameter(mm): 0.8-1.9 Application: Aquaculture,Wastewater Treatment
Standard Oxygen Transfer Effficiency: ≥40% Standard Oxygenation Capacity: ≥0.99kg O2/h
High Light:

air diffusion aerator

,

industrial pond aerator

Municipal Sewage Treatment EPDM Fine Bubble Plate Aerator



Installation:for Membrane disc aerator for wastewater treatment


1.fix the regulator in the down of the ponds via expansion bolts


2.Install the gas pipeline into the regulator by using hoop,then adjust


3.To prevent the aeration equipment,should install the system after building works



finished,then pour water into ponds.


4.To avoid leak between the pipeline and connection parts,should test the system by water in



advance(water should be 10cm exceed the diffuser),then ventilate the system.



Features



• Ideal for air-on/air-off applications such as SBRs, aerobic digesters, and anoxic swing zones,



  as well as continuous operation



• Over 22 million diffusers installed in municipal and industrial applications worldwide



• Advanced membrane perforation technique creates extremely fine, uniform bubble pattern



for optimal oxygen transfer



• Low maintenance and long service life of more than 5 years



• Using imported raw material



Advantages



1.Replacement of other diffuser brands of any membrane and size.


2.Easy equipping or retrofitting any types and dimensions of piping.


3.High quality material to insure long service lift up to 10years in proper opearation.


4.Space and energy saving to cut down human and operation cost.


5.Quickly to outdated and less efficient technologies.


Wastewater Treatment Application and Rubber+plastic+ABS Material rubber air diffuser



aerators manufacturer





Technical Parameters



Model HLBQ650 HLBQ1100
Membrane Material EPDM/Silicon EPDM/Silicon
Membrane thickness 1.8-2.0mm 1.8-2.0mm
Bubble Diameter 0.8-1.9mm 0.8-1.9mm
Standard Airflow 6m3/h 10m3/h
Aeration Range 1-16m3/h 4-32m3/h
Resistance Loss 2.0-4.3kPa 2.0-4.3kPa

Standard Oxygen Transfer Effficiency

(6m water depth)

≥40% ≥40%
Standard Oxygenation capacity ≥0.99kg O2/h ≥1.82kg O2/h
Oxygenation Effficiency ≥9.2kg O2/kw·h ≥9.2kg O2/kw·h
Effective Service Area 0.5-2.5m2 1.0-4.0m2






Municipal Sewage Treatment EPDM Fine Bubble Plate Aerator 0
