|Product Name:||Fine Bubble Membrane Plate Diffuser||Material:||EPDM , Silicon|
|Bubble Diameter(mm):||0.8-1.9||Application:||Aquaculture,Wastewater Treatment|
|Service Life:||> 8 Years||Warranty:||1 Year|
fine bubble aerator for ponds,
air diffusion aerator

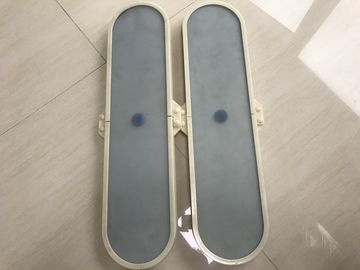

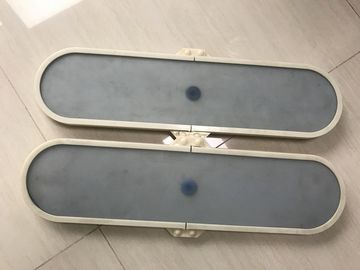

650 Silicon Fine Bubble Diffuser Plate For Sewage Treatment Plant
Plate micro porous aerator is applied in municipal wastewater treatment plant and water plant
biochemical pool, for oxygenation to the pool water.The equipment is the disc aeration facility.
To a certain density, arrange the equipments such as aeration plate and cloth gas pipeline
uniformly within the pool as required about the amount of gas and pool shape. Apply aeration
and oxygenation in the pool, provide oxygen required for the metabolism of the
microorganisms, and play the role of stirring and mixing, which allows the microorganisms,
dissolved oxygen and suspension in water sufficiently contact to promote microbial
degradation, so that the dissolved gases or volatile substances disperse into the atmosphere
to achieve the purpose of water cleaning.
♦ Low resistance loss
♦ Highly Tear Resistant
♦ Anti-clogging, anti-backflow
♦ Ageing-resistant, anti-corrosion
♦ High efficiency, energy-saving
1.Replacement of other diffuser brands of any membrane and size.
2.Easy equipping or retrofitting any types and dimensions of piping.
3.High quality material to insure long service lift up to 10years in proper opearation.
4.Space and energy saving to cut down human and operation cost.
5.Quickly to outdated and less efficient technologies.
Standard Oxygen Transfer Effficiency
(6m water depth)
|Standard Oxygenation capacity||≥0.99kg O2/h||≥1.82kg O2/h|
|Oxygenation Effficiency||≥9.2kg O2/kw·h||≥9.2kg O2/kw·h|
|Effective Service Area||0.5-2.5m2||1.0-4.0m2
