63mm 93mm Ceramic Plate Aeratorc For Aeration Basin Wastewater Treatment

China Yixing Holly Technology Co., Ltd. certification
China Yixing Holly Technology Co., Ltd. certification
Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Vincent

A productive visit . Thanks Kevin for your experience sharing It was a one day internship trip. Thanks to all.

—— Martin

I'm Online Chat Now

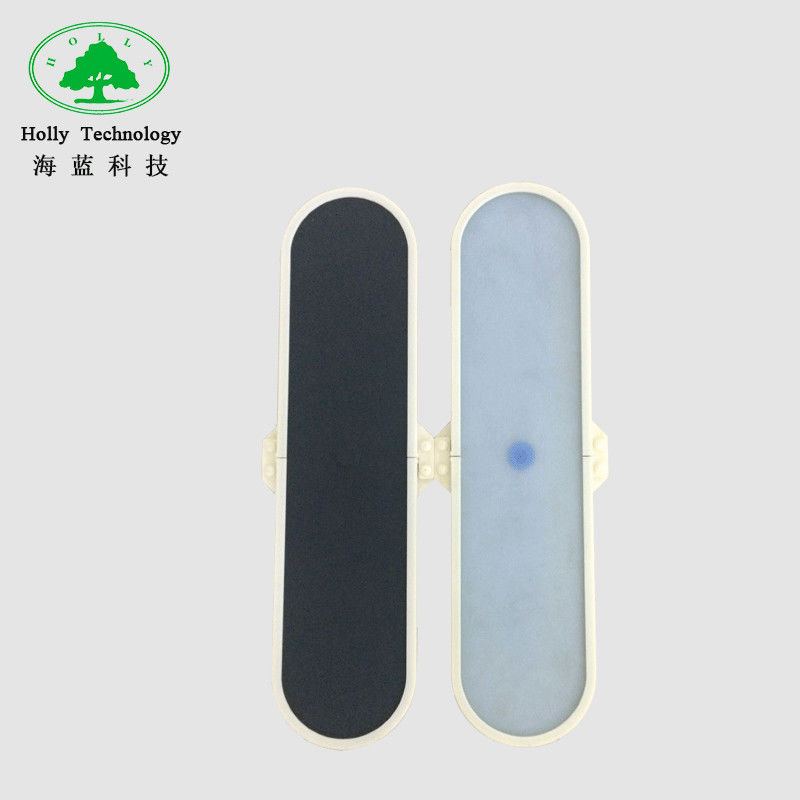

63mm 93mm Ceramic Plate Aeratorc For Aeration Basin Wastewater Treatment

63mm 93mm Ceramic Plate Aeratorc For Aeration Basin Wastewater Treatment
63mm 93mm Ceramic Plate Aeratorc For Aeration Basin Wastewater Treatment 63mm 93mm Ceramic Plate Aeratorc For Aeration Basin Wastewater Treatment

Large Image :  63mm 93mm Ceramic Plate Aeratorc For Aeration Basin Wastewater Treatment

Product Details:
Place of Origin: China
Brand Name: HOLLY
Certification: ISO9001,CE
Model Number: HLBQ
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: USD13-20 PCS
Packaging Details: Bubble pack and five-layor carton for Fine bubble membrane plate diffuser
Delivery Time: According to the order quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS per month
Detailed Product Description
Product Name: Fine Bubble Membrane Plate Diffuser Material: EPDM , Silicon
Bubble Diameter(mm): 0.8-1.9 Application: Aquaculture,Wastewater Treatment
Function: Treat Water Diameter: 63mm 93mm
High Light:

fine bubble aerator for ponds

,

air diffusion aerator

High Quality Plate Type Air Diffuser Ceramic Aerator For Water Treatment



Introduction



Fine bubble aeration is an efficient way to transfer oxygen to a water body. A compressor on



shore pumps air through a hose, which is connected to an underwater aeration unit. Attached



to the unit are a number of diffusers. These diffusers come in the shape of discs, plates, tubes



or hoses constructed from glass-bonded silica, porous ceramic plastic, PVC or perforated



membranes made from EPDM (ethylene propylene diene Monomer) rubber Air pumped



through the diffuser membranes is released into the water. These bubbles are known as fine



bubbles.





Features



♦ Low resistance loss


♦ Highly Tear Resistant


♦ Anti-clogging, anti-backflow


♦ Ageing-resistant, anti-corrosion


♦ High efficiency, energy-saving



Our Service


1. Qaulity level including packing standard is the best and most stable.



2. Best raw material and other accessaries for membrane disc diffuser.



3. All enquiries and questions will be replied within 24 hours.



4. All claims to be settled down within 24 hours.



5. The best payment conditions.





Technical Parameters



Model HLBQ650 HLBQ1100
Membrane Material EPDM/Silicon EPDM/Silicon
Membrane thickness 1.8-2.0mm 1.8-2.0mm
Bubble Diameter 0.8-1.9mm 0.8-1.9mm
Standard Airflow 6m3/h 10m3/h
Aeration Range 1-16m3/h 4-32m3/h
Resistance Loss 2.0-4.3kPa 2.0-4.3kPa

Standard Oxygen Transfer Effficiency

(6m water depth)

≥40% ≥40%
Standard Oxygenation capacity ≥0.99kg O2/h ≥1.82kg O2/h
Oxygenation Effficiency ≥9.2kg O2/kw·h ≥9.2kg O2/kw·h
Effective Service Area 0.5-2.5m2 1.0-4.0m2






63mm 93mm Ceramic Plate Aeratorc For Aeration Basin Wastewater Treatment 0
