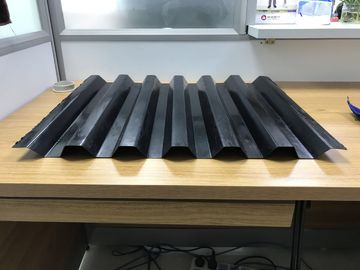

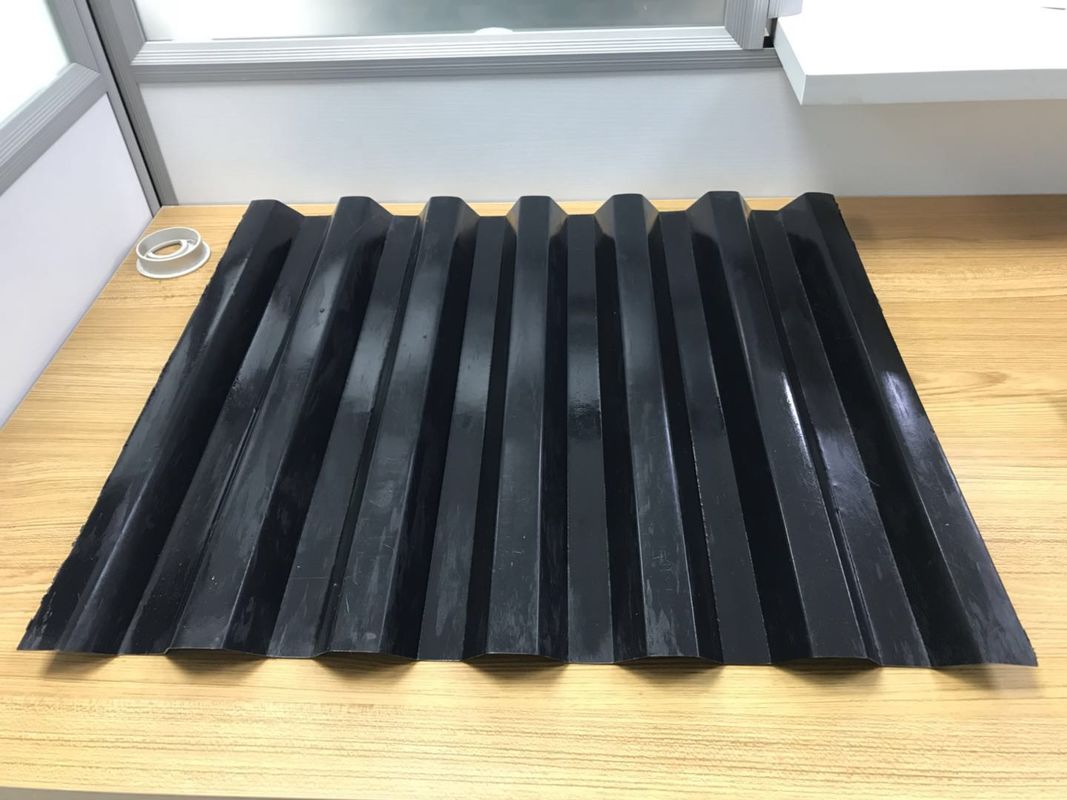

25mm 35mm 50mm 80mm Tube Settler Media , Water Treatment Tube Settler Clarifier

25mm 35mm 50mm 80mm Tube Settler Media ,  Water Treatment Tube Settler Clarifier
25mm 35mm 50mm 80mm Tube Settler Media ,  Water Treatment Tube Settler Clarifier
video play

Large Image :  25mm 35mm 50mm 80mm Tube Settler Media , Water Treatment Tube Settler Clarifier

Product Details:
Place of Origin: China
Brand Name: HOLLY
Model Number: HLTS
Payment & Shipping Terms:
Minimum Order Quantity: 10 cube
Price: US $0.5 - 3 / Sheet
Packaging Details: Wooden pallet,container or by clients' requirement
Delivery Time: 20works days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 Sheet/Sheets per Month
Detailed Product Description
Place Of Origin: Jiangsu, China (Mainland) Material: PP PVC FRP
Application: Water Treatment Color: Blue,white,black
Plate Thickness (mm):: Customized Type: Chemical Packing
High Light:

plate settler clarifier

,

tube deck media

25mm 35mm 50mm 80mm Water Treatment Products of Tube Settler Media

Product Description

Media have no moving parts as a result of which there is no energy loss. The distribution and

entry velocity are minimum resulting in maximum efficiency and better effluent quality. The

efficient design minimizes space requirements and is sturdy and easy to transport and install.

Media increase the capacity of clarifier due to increase in area.

The working principle is: Set in the aeration tank filler, which was used as the bio-film carrier.

After the waste water to be treated flows through a flow rate of oxygenate to a filler in contact

with the bio-film, bio-film and suspended activated sludge join action, to effect purification of

waste water.


Advantages

1. Process efficiency

From multiplication of the sedimentation area, chevron equidistant channel shape and

adaptation of the settling area spacing and slope

2. Flexible dimensions

It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.

3. Easy handling

Simple on site assembly method grants low cost, safe delivery to any place in the world.

4. Sophisticated support system

With stainless steel and specially shaped glass fibre reinforced plastic beams minimizing

turbulence and sludge deposit.

5. Strong and high quality material

We provides high stability of the modules for easy maintenance – PP material approved for

high standards of potable water applications



Technical parameters

Material Aperture(mm) Thickness(mm) Pieces Color














PP



φ25

0.4



60















White

0.6
0.8
1
1.2



φ30

0.4



50

0.6
0.8
1
1.2



φ35

0.4



44

0.6
0.8
1
1.2



φ40

0.4




40

0.6
0.8
1
1.2



φ50

0.4



32

0.6
0.8
1
1.2



φ80

0.4



20

0.6
0.8
1
1.2



Material Aperture(mm) Thickness(mm) Pieces Color









PVC


φ30

0.4


50











Blue/Black

0.6
0.8
1


φ35

0.4


44

0.6
0.8
1


φ40

0.4


40

0.6
0.8
1


φ50

0.4


32

0.6
0.8
1


φ80

0.4


20

0.6
0.8
1




25mm 35mm 50mm 80mm Tube Settler Media ,  Water Treatment Tube Settler Clarifier 0
